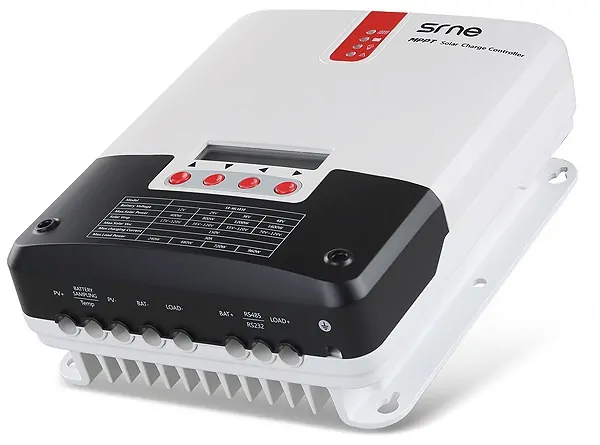

MPPT Regulator 12/24V 30A
Slikovni rezultat za sr-ml2420
MPPT Regulator 12/24V 30A
Slikovni rezultat za sr-ml2420
Slikovni rezultat za sr-ml2420
Model
ML2420
ML2430
ML2440
System voltage
12V/24V Auto
No-load loss
0.7 W to 1.2W
Battery voltage
9 to 35
Max. solar input voltage
100V (25°C), 90V (-25°C)
Max. power point voltage range
Battery voltage +2V to 75V
Rated charging current
20A
30A
40A
Rated load current
20A
Max. capacitive load capacity
10000uF
Max. photovoltaic system input power
260W/ 12V
520W/ 24V
400W/ 12V
800W/ 24V
550W/ 12V
1100W/ 24V
Conversion efficiency
? 98%
MPPT tracking efficiency
> 99%
Temperature compensation factor
-3.0mv/ °C/ 2V (default)
Operating temperature
-35°C to +45?
Protection degree
IP32
Weight
1.4kg
2kg
2kg
Communication method
RS232
Altitude
? 3000m
Product dimensions
210*151*59.5mm
238*173*72.5
